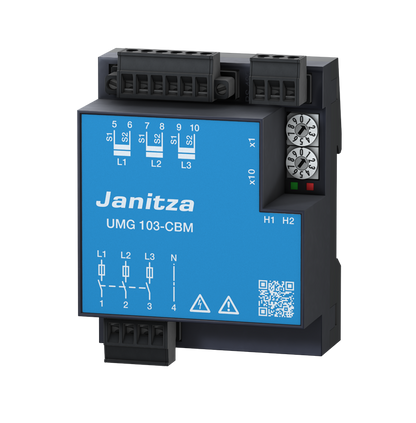

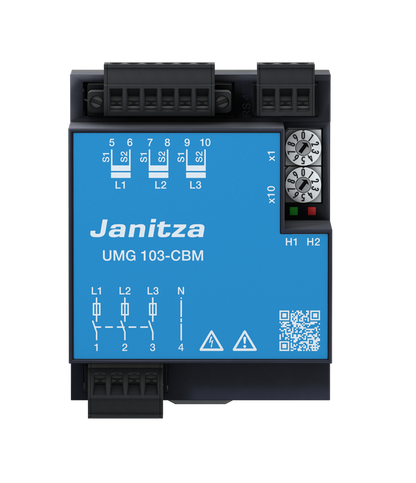

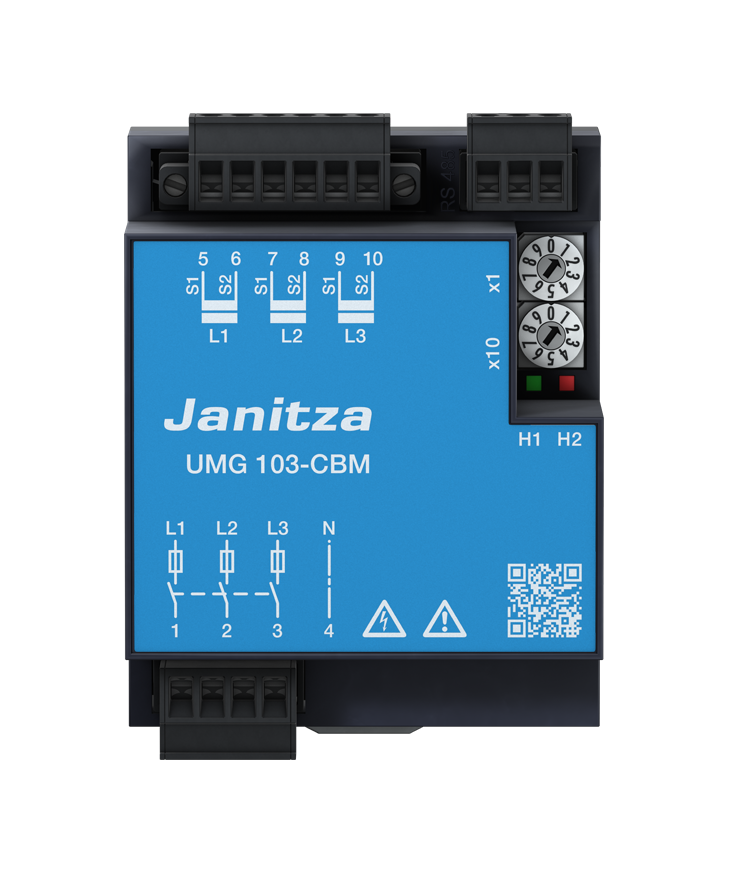

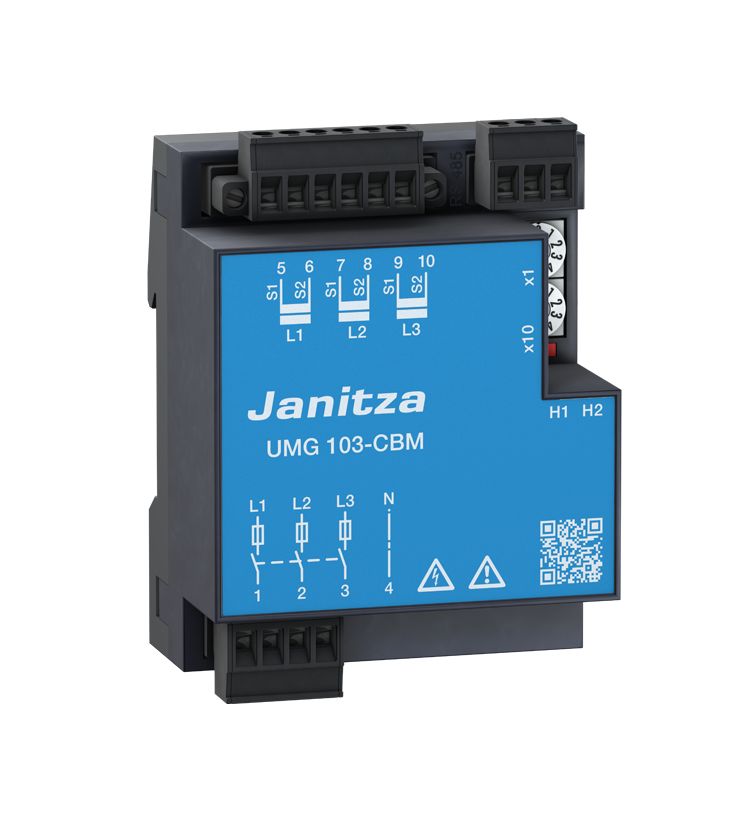

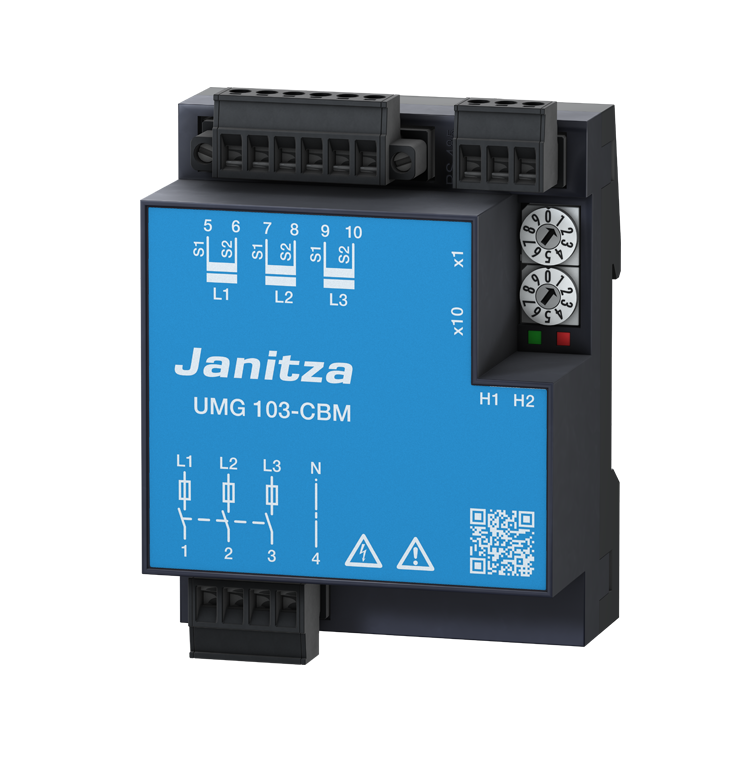

UMG 103 CBM | Universal measuring device with communication

€249,80 EUR
€249,80 EUR
€249,80 EUR €287,59 EUR
Tax included. Shipping calculated at checkout.

💬 Need a better price for higher volumes? Contact us for a personalized offer!

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"
Sorry, it's out of stock.

But we can let you know when it's back in.
Up to 13% offSold out

Product Description:


The UMG 103-CBM is a universal three-phase energy meter designed for precise monitoring in both TN and TT network configurations. It comes equipped with an internal clock, battery backup, and 4 MB of memory for reliable data logging, making it a durable and efficient solution for ongoing energy management.

This meter supports harmonic analysis up to the 25th order and includes four voltage inputs—suitable for three-phase, four-wire systems up to 277 V and three-phase, three-wire systems up to 480 V. It also features three current inputs compatible with current transformers (CTs), offering configurable nominal values of 5 A or 1 A.

With a current measurement range from 0.005 to 6 A, the UMG 103-CBM is well-suited for detailed monitoring. The built-in RS485 interface with Modbus RTU/slave protocol enables seamless integration into broader energy management systems, making it ideal for industrial and utility environments.

Key Feartures

  • Compatible with TN and TT Systems: Designed for use in various electrical network types
  • Input Configuration: Features 3 voltage inputs (300V CAT III) and 3 current inputs
  • Real-Time Monitoring: Continuously scans voltage and current signals
  • Precise Measurements: Accuracy class 0.5 for energy, 0.2% for voltage and current
  • Harmonic Detection: Analyzes harmonics up to the 25th order
  • Software Included: Comes with GridVis® for data analysis and visualization
  • Communication Interface: RS485 port with Modbus RTU (slave mode) support
  • DIN Rail Installation: Fits standard 35mm DIN rail for easy mounting
  • Distribution Panel Ready: Ideal for integration into electrical distribution boards

Specifications


General Information
Net Weight (with Plug-in Terminals) approx. 200 g (0.44 lb)
Device Dimensions h = 98 mm, w = 71.5 mm d= 46 mm,
(h = 3.86 in, w = 2.82 in, d = 1.18 in)
Memory (flash)
 4 MB
Supply from single phase 115 - 277 V (+-10%), 50/60 Hz
Supply from three phases
80 - 277 V (+-10%), 50/60 Hz
Certifications UL Certified


Voltage measurement
3-phase, 4-conductor systems with rated voltages
(L-N/L-L)
max. 277 V/480 V
Overvoltage category up to 2000 m
 300 V CAT III
Resolution
0.01 V
Harmonics
1st – 40th


RS485 interface
Protocol, modbus RTU
Modbus RTU/Slave
Transfer rate
9.6 kbps, 19.2 kbps, 38.4 kbps, 57.6 kbps, 15.2 kbps
