UMG 96-PQ-L Low Power, 90-277V | Power Analyzer

Product Description:

The UMG 96-PQ-L-LP is a highly capable, low-power power analyzer designed for monitoring energy usage and power quality in TN and TT systems. It also includes features for detecting ground fault currents and monitoring temperature. The device supports direct connection to Rogowski coils or low-power transformers with a 333 mV output. It logs all measurement data and displays it clearly via a built-in graphical screen, offering comprehensive visibility into your electrical system's performance and helping to prevent operational failures.

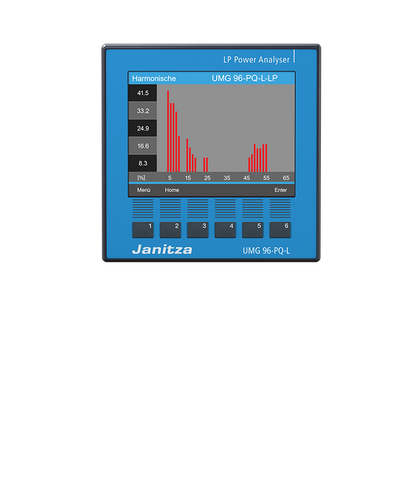

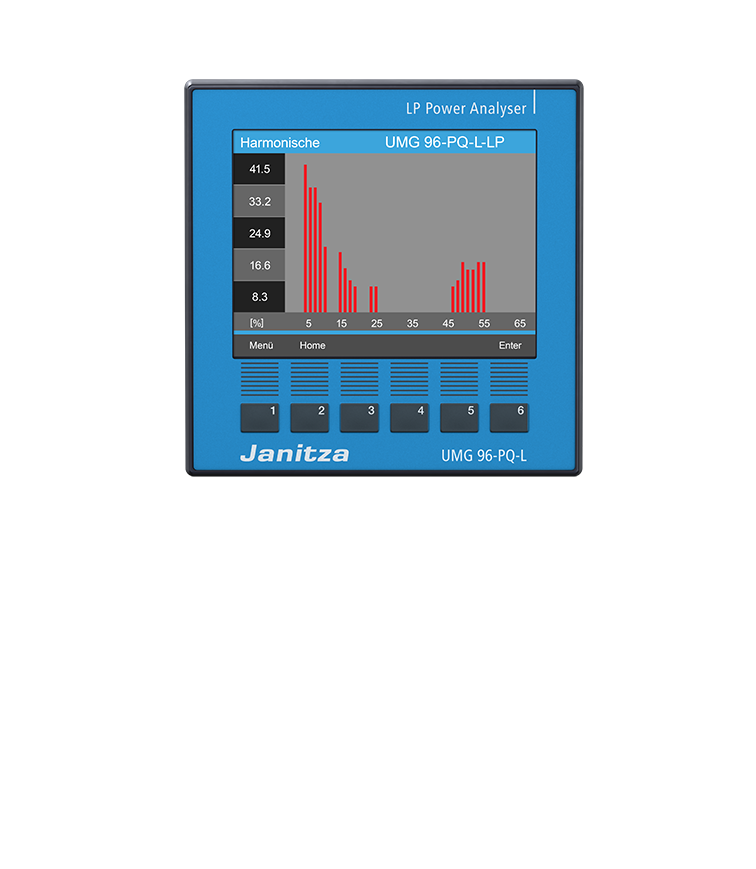

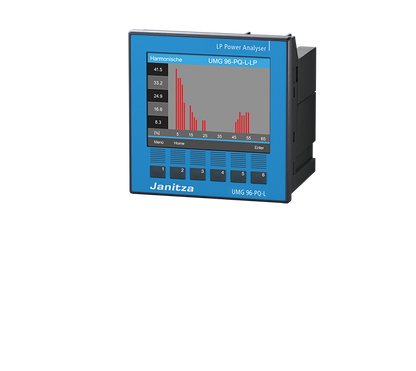

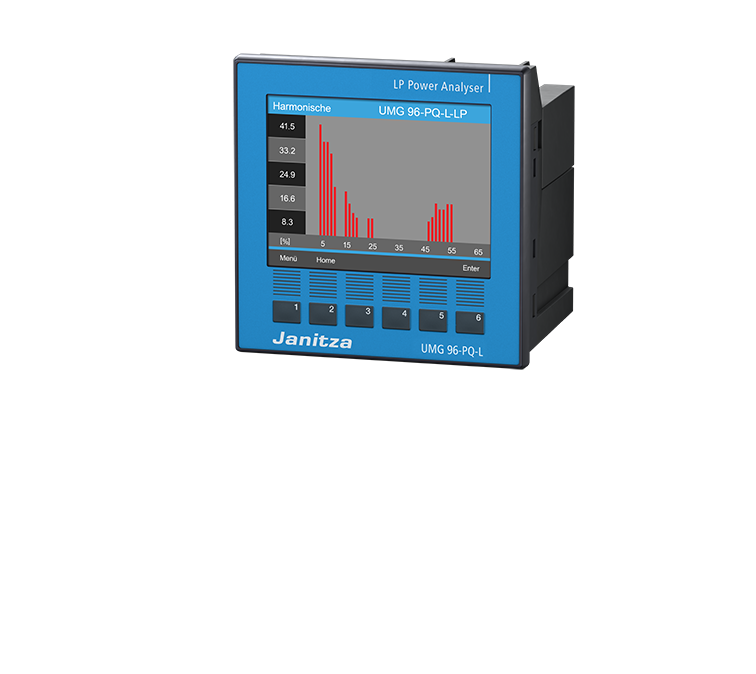

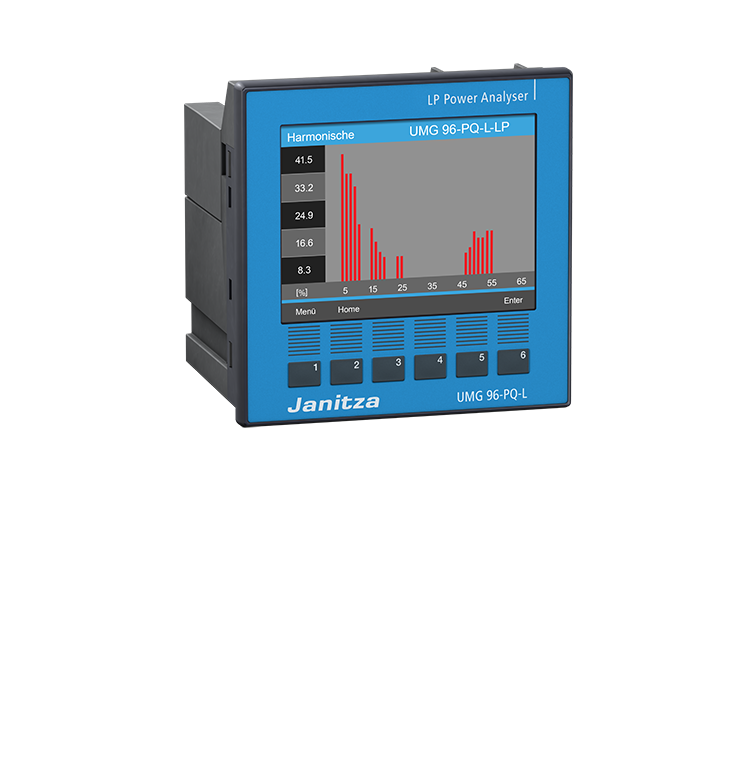

Graphical Interface
Equipped with a graphical display, the UMG 96-PQ-L-LP presents real-time and stored measurement values in an intuitive format. It includes oscilloscope functionality and phasor diagram capabilities for deeper insights into power conditions. Its large, compressed memory ensures long-term data storage—up to 15 years.

Power Quality Monitoring
To evaluate the power quality of an installation, the device analyzes harmonics up to the 65th order. With a sampling rate of 280 points per 20 ms and 20 ms RMS value logging, it provides a precise and detailed view of electrical system behavior.

Low Power Design
As a low-power analyzer, it offers several benefits: compatible current transformers are more compact and cost-effective, making them ideal for tight installation spaces. Moreover, low-power CTs are safer to handle, as they don’t require short-circuiting during installation. Note that only low-power CTs or Rogowski coils can be used with this device.

Expandability
The UMG 96-PQ-L-LP can be enhanced with additional features using Janitza GridVis® software for configuration, advanced analysis, and remote access. When paired with the RCM-E module, the device gains Ethernet connectivity, gateway functionality, and supports up to five simultaneous Modbus connections.
